Springfield Armory 1911-A1 #WW92551

Springfield frame and slide.
Fit slide to frame, match grade. Silver-soldered 4142 inserts.

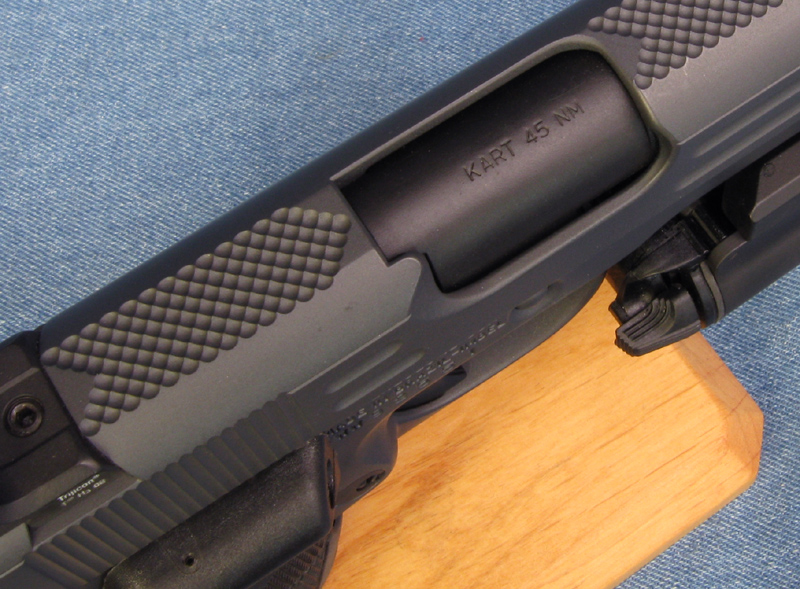

Kart 4150 Chrome-moly barrel.
Wilson barrel link.
Reliability package.
Flush cut and large crown muzzle.
EGW thick flange bushing. Custom contoured.
Bar stock recoil spring plug. Golfballed.

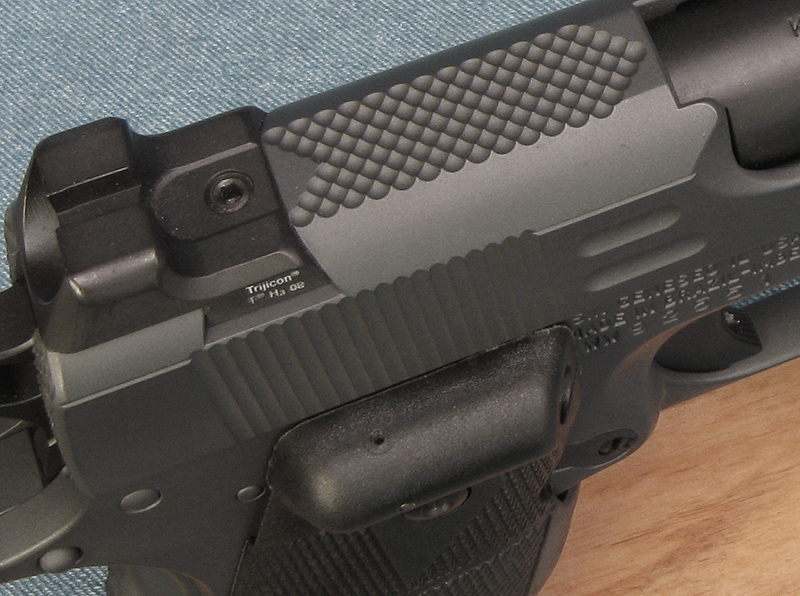

Flatten and golfball top of slide. Double arrowhead pattern.
Rogers' Tier One sights. Cross dovetailed front with Trijicon
     lamp. Green with white outline.
     Rear sight. Two Trijicon lamps. Yellow without white outline.
Surface grind sides of slide to remove rollmarks.
Lightening grooves. Right and left.
Re-machine rear cocking serrations. Radiused grooves.
Front cocking serrations. Radiused grooves.
French cuts.
Ball cuts.
Machine large 60 degree bevel on bottom of slide.
Remachine ejection port.
Remachine ejector slot in slide.
Fabricate custom ejector.
Bar stock firing pin stop. Small radius. Fitted.
Two Wilson tuned extractors.
Golfball rear of slide, frame, ejector and extractors.
Brown's 'Hardcore' slide stop. Recontoured. Golfballed.
Chamfer slide stop pin hole on right side of frame. Shorten
     and radius slide stop pin to suit.
Machine 'take-down' cut indicator.
Bar stock plunger tube.
Hardened plungers.
EGW bar stock thumb safety. Recontoured. Golfballed.
S&A grip safety. Recontoured and high cut. Golfballed pad.
Wilson match grade hammer.
Wilson tool steel sear.
Colt disconnector.
Greider medium length trigger. Internally lightened.
Trigger job. 3 3/4lbs.
Wilson mag catch. Shortened, angled, golfballed.
High cut and golfball frontstrap.
Brown's mainspring housing. Fitted. Golfballed.
Heavy bevel at heel of butt.
Carry bevel package. Moderate.
Rogers' deluxe magwell. Cut at 15 degrees. Modify and weld
     mainspring housing for larger opening.
Two Wolff recoil springs.
Dawson light rail.
Surefire X300 110 lumen weapon light. Cerakote finish.
Crimson Trace LG401 laser grips. Front activation.
Parkerize (manganese phosphate), Cerakote all. Sniper Grey
     and Graphite Black.
