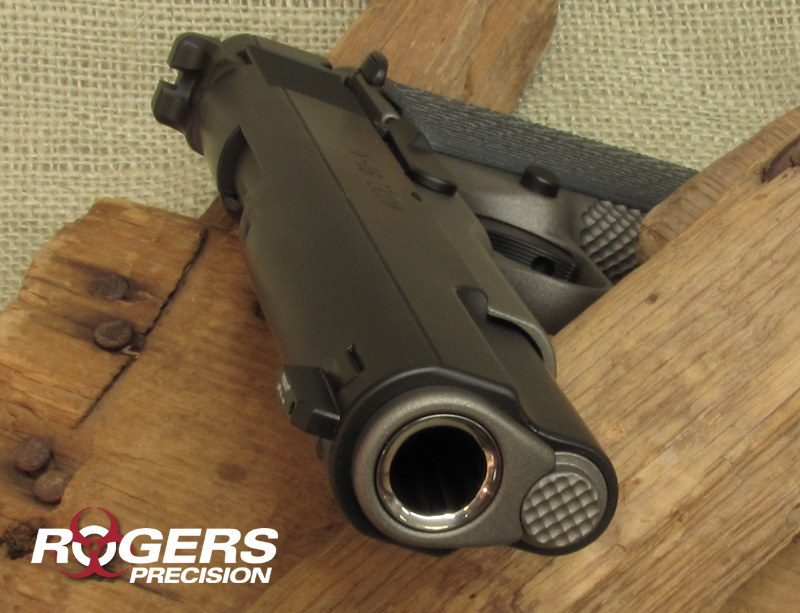

Two-Tone Springer

Springfield Armory Model #PW9108LP Serial #WW121561 (California compliant)

Slide to frame fit. Match grade.
Kart match barrel, shortened for flush fit. Match crowned.
Wilson barrel link.
Full reliability tune.
EGW match bushing
Golfballed recoil spring plug.
2 Wolff recoil springs.
Rogers' Tier One rear sight.
Dovetailed front sight with Trijicon tritium lamp. Green with white outline.
Ball cuts.
French cuts.
Remachine rear cocking serrations to new grooved profile.
Lower, forward cut and flare ejection port.
Custom machined ejector.
Bar stock oversized firing pin stop with reduced cam radius.
2 Wilson tuned extractors.
Wilson hammer.
Wilson match sear.
Colt disconnector.
Greider medium length trigger. Internally lightened.
Wolff sear spring.
Trigger job. 3 3/4lbs.
Brown's hardcore slide stop. Scoop cut top, golfballed bottom.
Shorten and radius slide stop pin. Chamfer frame hole.
Brown's thumb safety. Custom contoured.
Bar stock plunger tube housing.
Harden and polish thumb safety and slide stop plungers.
S&A grip safety. High cut grip modification.
Golfball pad of grip safety.
High cut and golfball frontstrap.
Wilson extended magazine release. Shortened, angled and golfballed.
Brown's mainspring housing. Golfballed.
Rogers' deluxe mag well bevel. Includes modifications to mainspring
     housing for largest possible well.
Carry bevel package. Moderate.
Davidson G10 grips. Carry beveled.
Hex head grip screws.
Manganese Phosphate and  two-tone Cerakote with Graphite Black over Stainless.
2 CMC 8 round magazines. Finished in Stainless.
